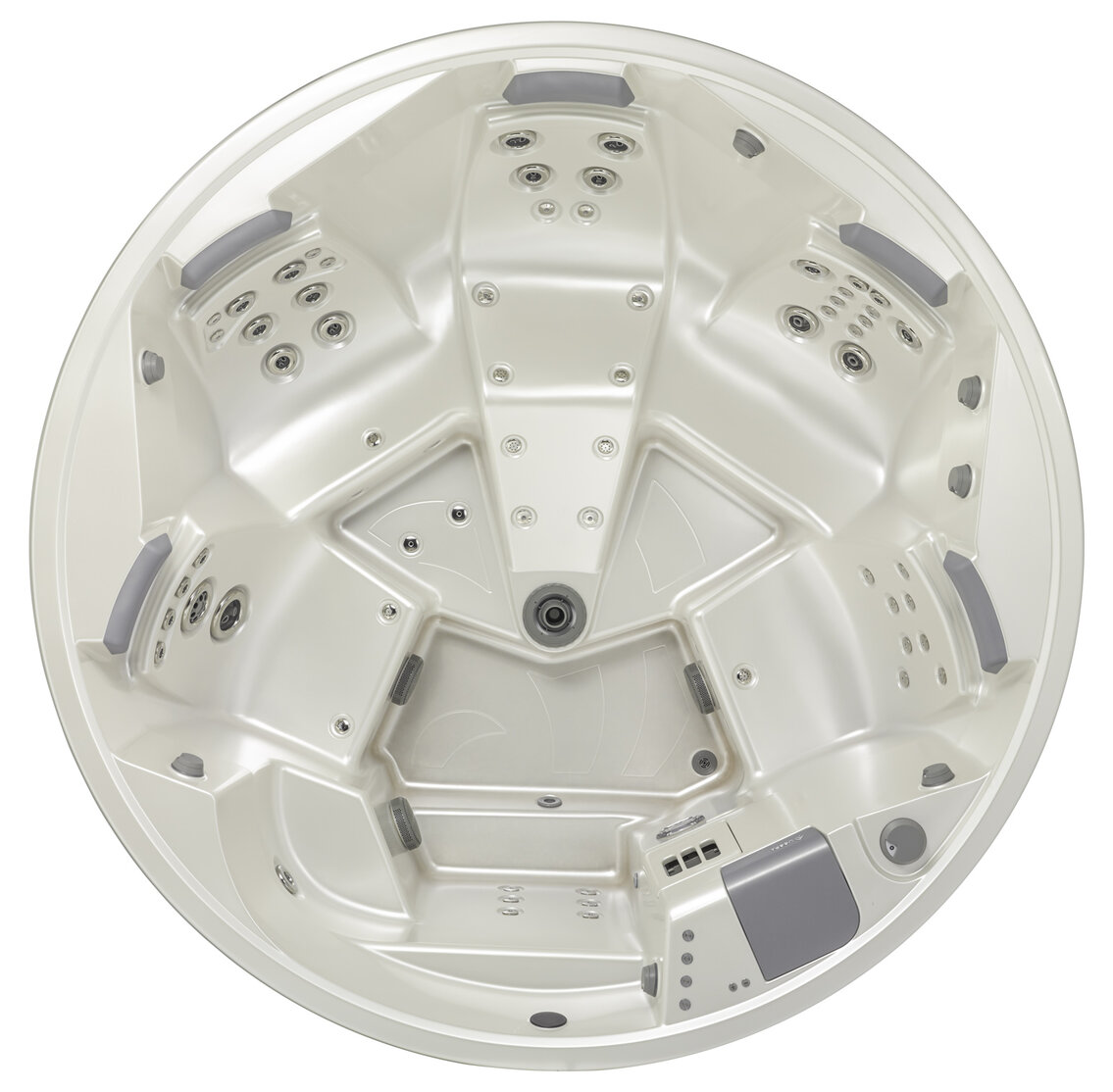

A round hot tub with a uniquely shaped interior. The OrioniN features four comfortable seats, a raised seat and even a lounger. All this is complemented by a wide range of hydrotherapy features, including the Volcano Jet geyser.

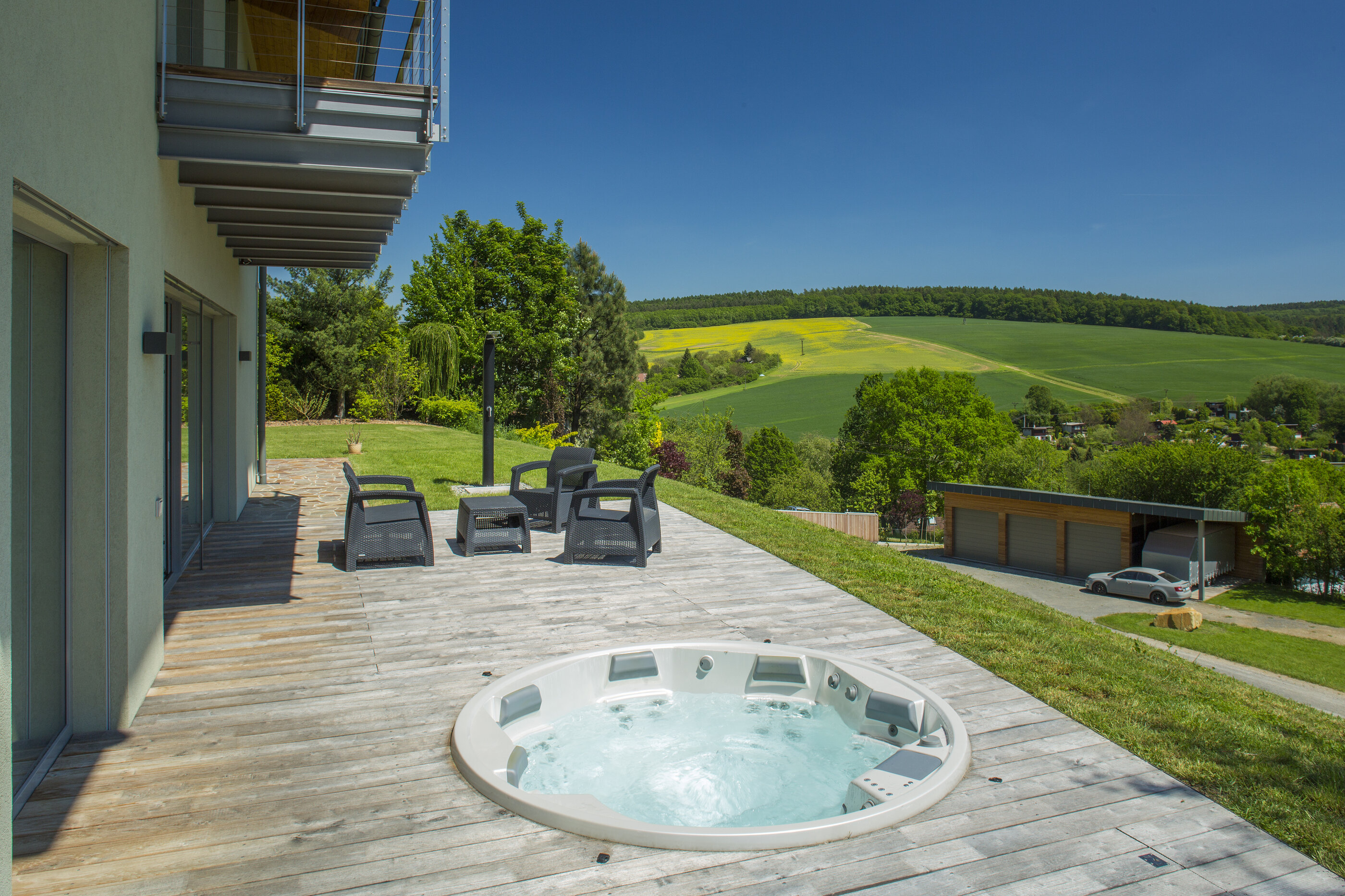

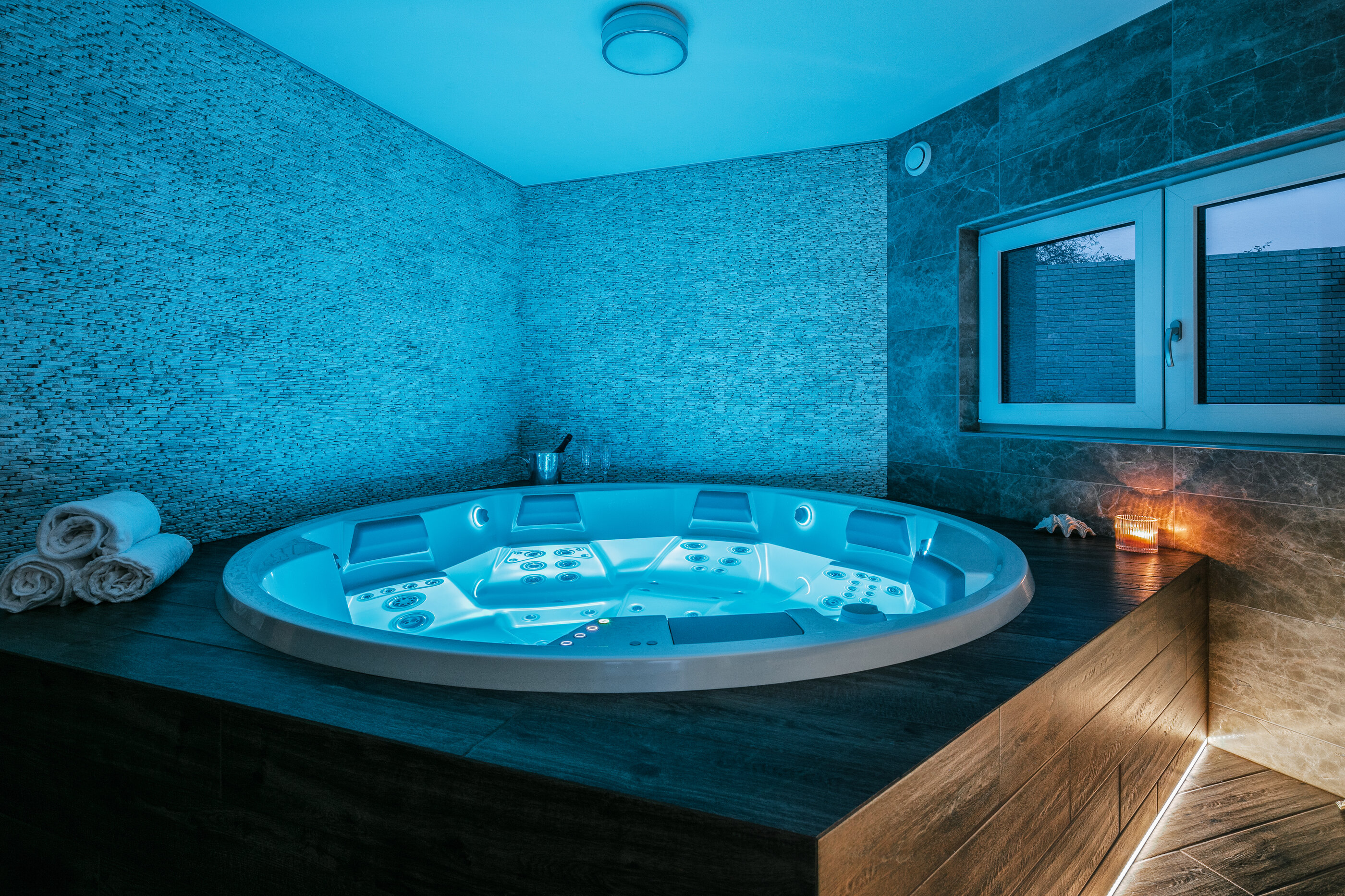

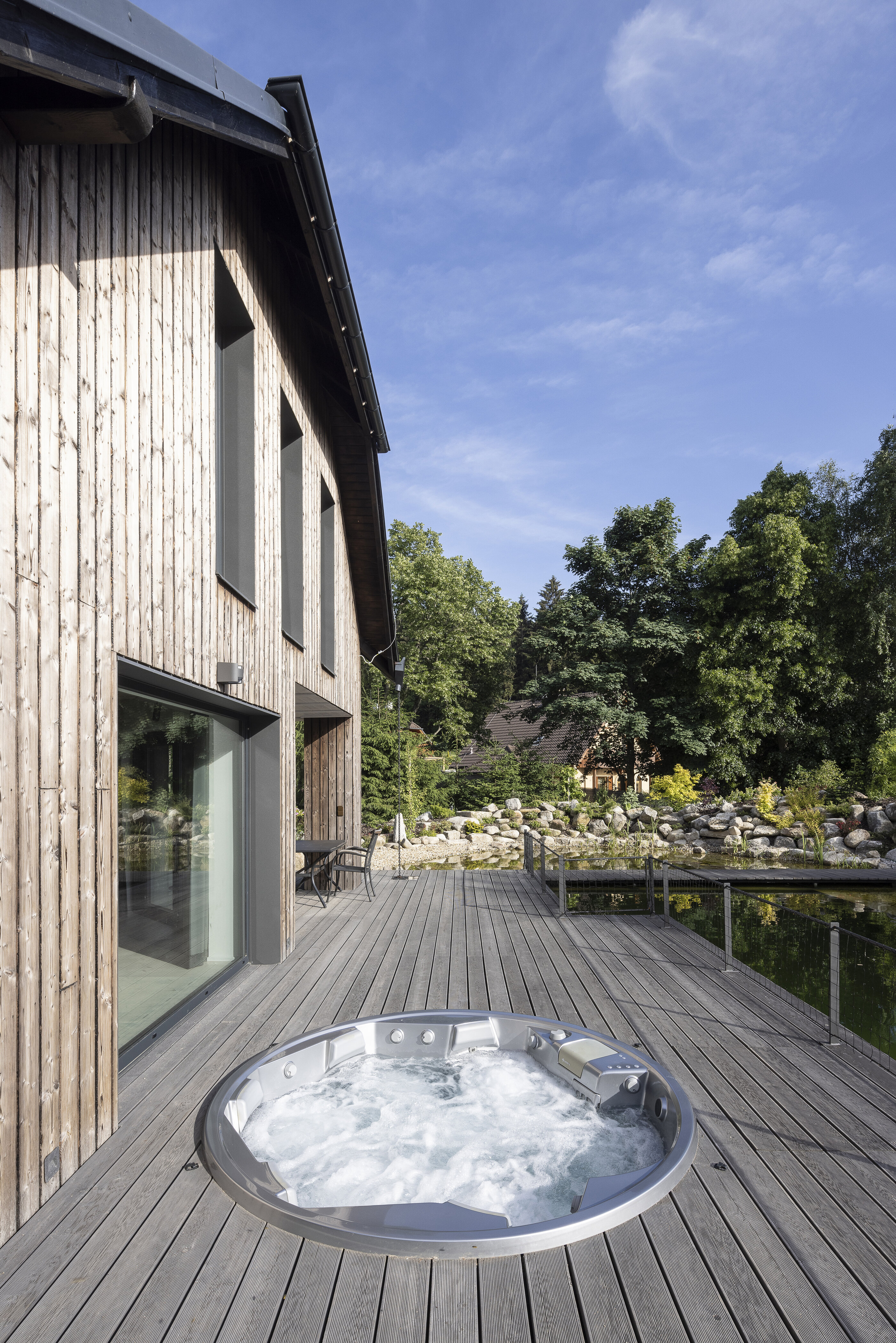

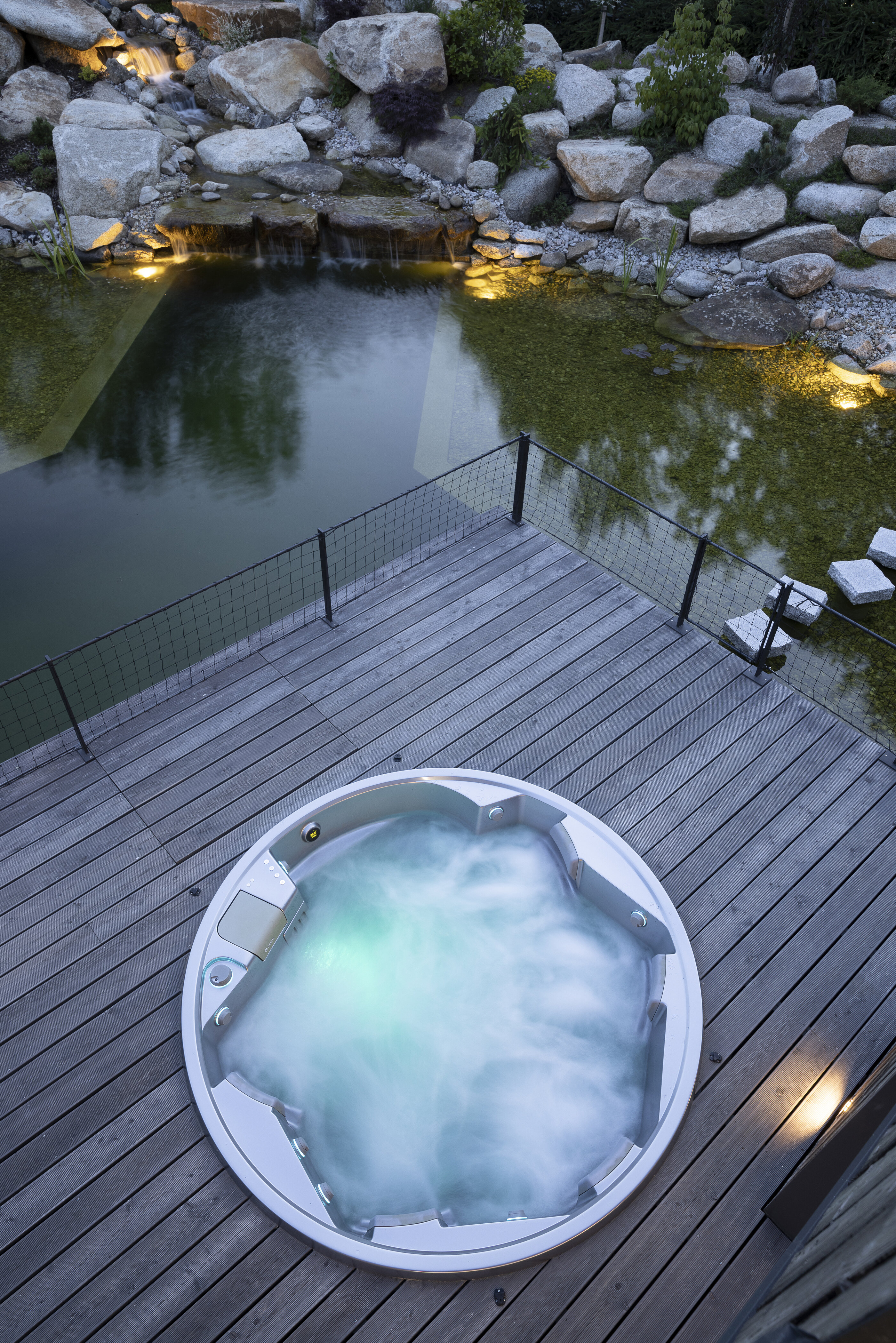

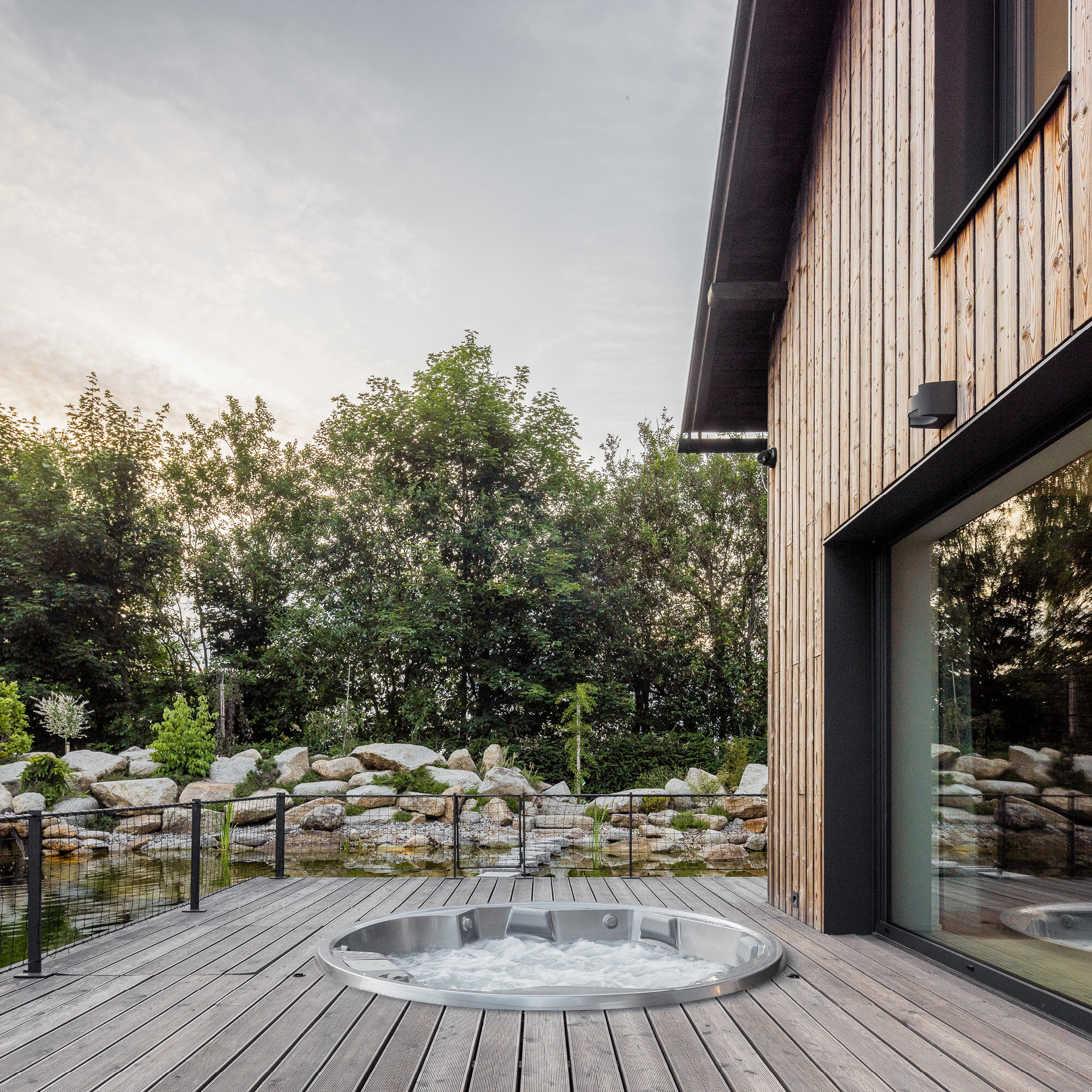

OrioniN is an exceptional spa, perfectly suited to creating interesting architectural compositions. It really comes into its own when installed in-ground, where it blends elegantly and harmoniously with its surroundings.
Effective hydrotherapy
These ingeniously designed massage systems provide an effective massage and complete relaxation. Each area of the spa is fitted with a different hydrotherapy system. Simply move from one to the next in turn to massage your whole body.
More about hydrotherapy
Smart, energy-efficient hot tubs
The unique technologies we have developed for our spa ensure energy-efficient operation. They also make water maintenance much easier and offer a range of unique features, such as self-diagnostics, an energy-saving mode and automatic operation optimisation.
more about technologies
Timeless design
Design is meant to delight and uplift. That’s why you should also enjoy your spa. Most importantly, however, the design of our private spas combines aesthetics with functionality in every detail. After all, comfort means much more than simply sitting comfortably.
more about design
Easy to use

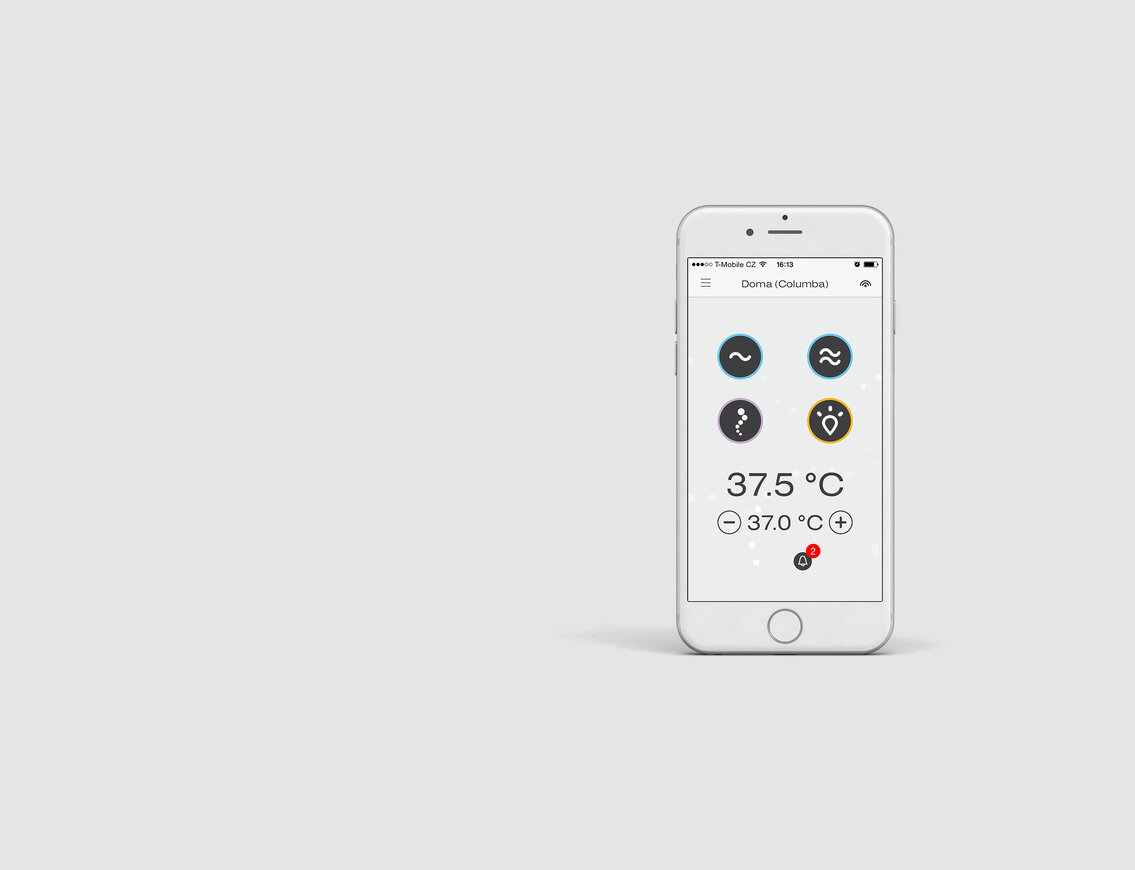

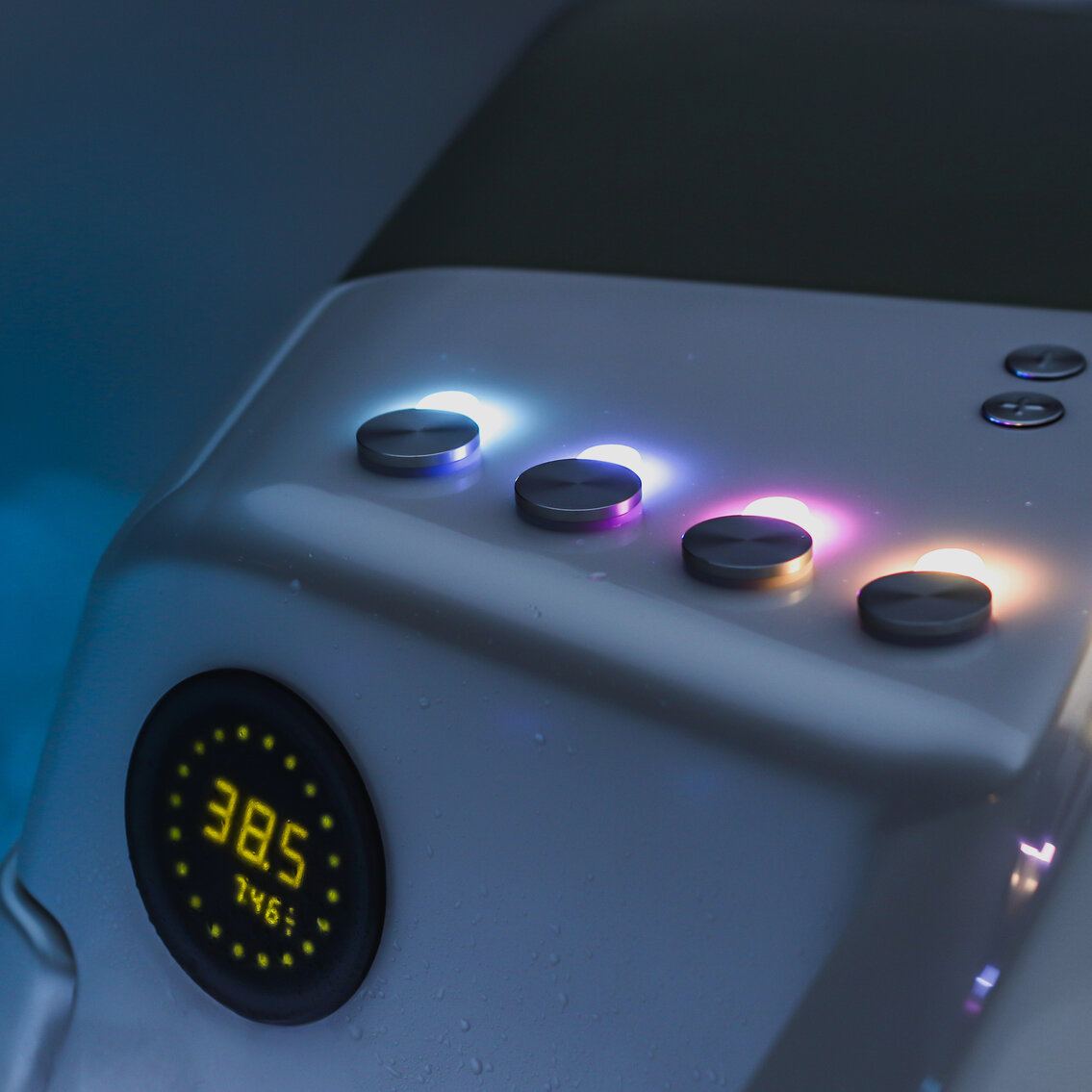

The most important features – the massage functions and lighting – can be controlled whilst you’re in the spa simply by pressing the buttons on the spa itself. You can easily view information about the temperature and the time spent relaxing on the display whilst you’re in the water. You can explore the advanced features and remote control functions via the mobile app. The spa can also be integrated into a smart home system.
Technical information
head_product_accordion_parameters
Model Details
| Shell height | 93.5 cm |
|---|---|

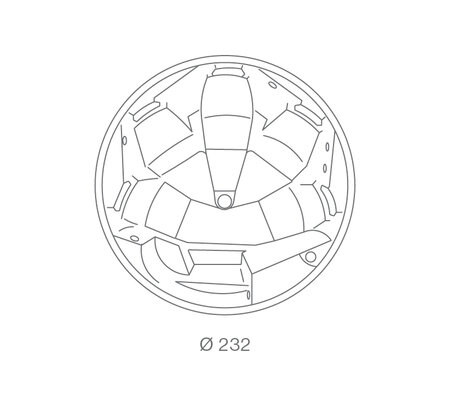

| Shell diameter | 232 cm |

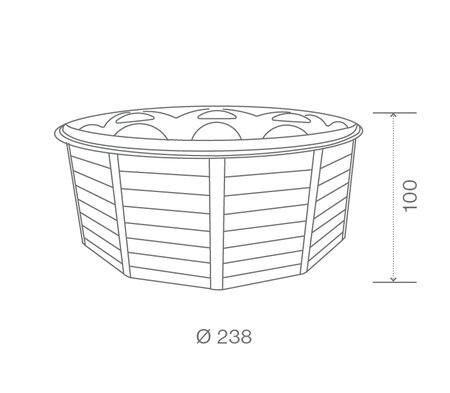

| Cabinet height | 100 cm |
| Cabinet diameter | 238 cm |
| Water volume | 1,250 l |
| Dry weight | 430 kg |
| Filled weight | 1,680 kg |
| MassiveShell Construction / color range | yes / 12+ |
| Total Seating | 6 |
| Seats | 5 |
| Loungers | 1 |
Massage
| Total number of jets | 72 |
|---|---|
| Water Jets | 58 |
| Air Jets | 14 |
| TurboBoost system | Personal |
Boost ControliN regulation |
6 |
Special Jets
| Pillow Jet | 1 |
|---|---|
| Volcano Jet | 1 |
Hydroterapeutic sets
ShiatsuComplexiN |
1 |
|---|---|
FanComplexiN |
1 |
LegComplexiN |
1 |
HamamComplexiN |
1 |
XComplexiN |
1 |
FrontComplexiN |
1 |
Control
USSPA iNtellismart® electropack |
yes |
|---|---|
| ISM® control system | yes |
| Applilcation Control | USSPA SmartApp |
| Web Control (connection to internet needed) | yes |
| Selfdiagnostic with optional protocol | yes |
| Control of lifetime of selected components | yes |
| Standard Energy Save Mode | yes |
iNvision®display |
yes |
| iNcontrol piezo buttons | 4 |
Technology
| Pump 1 / single | 1,5 kW + 5 HP |
|---|---|
| Pump 2 / single | 1,5 kW + 5 HP |
| Circulation pump | yes |
| Air blower | 1,2 kW |
| ICM® Intelligent Cleaning Management | Automatic | Manual |
| Pressure Clean filtration | yes |
| UV lamp | yes |
| Heater | 6 kW Titanium Coil |
| Protection System | NordicSuperioriN |
| Insulation | ThermoguardiN |
| Lights | Rainbow Light |
Other standard equipment
| Pillows / color | 5 / grey |
|---|---|
| Cover / color range | yes / 8+ |
| Cabinet / design range | yes / 10+ |
| Protective cabinet bottom - Pan | yes |
| Bottom drainage | yes |
| Multilevel spa bottom | yes |
