The Dino professional hot tub offers a high-quality relaxation experience for up to seven people at a time. Water and air jets, positioned around the entire circumference of the hot tub, provide an effective massage.
A round hot tub that meets the strictest European standards for public use. Compared to the similar Polo model, the Dino is deeper, which significantly increases its capacity. It is an excellent choice for water parks, hotels and wellness centres.
Technical information
head_product_accordion_parameters
Model Details
| Shell height | 100 cm |
|---|---|

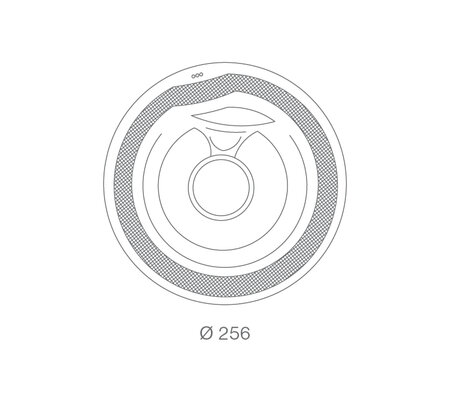

| Shell diameter | 256 cm |
| Frame Height | 116 cm |
| Frame Diameter | 256 cm |
| Water volume | 1,630 l |
| Dry weight | 250 kg |
| Filled weight | 1,880 kg |
| MassiveShell Construction | yes |
| Configurable installation frame | yes |
| Total Seating | 7 |
| Full-perimeter overflow gutter Outflow | yes |
| Number of drains | 4 |
| Bottom outlet / sand filtration discharge | yes |
Massage
| Total number of jets | 44 |
|---|---|
| Water Jets | 30 |
| Air Jets | 14 |
Control
USSPA iNtellismart® electropack |
yes |
|---|---|
| ISM® control system | yes |
| Operation on the control unit | yes |
| Control via PC application (must connect to local LAN network) | yes |
| Selfdiagnostic with optional protocol | yes |
| Control of lifetime of selected components | yes |
| iNcontrol piezo buttons | 3 |
Technology
| Pump 1 | 1,5 kW + 3 HP |
|---|---|
| Commercial air blower | yes |
| Sand Filtration | yes |
| Equalising tank | yes |
| Automatic water level sensor | yes |
| Automatic water refilling | yes |
| UV lamp | yes |
| Heater | 9 kW Titanium Coil |
| Insulation | PU |
| Automatic dosing of chemicals | yes |
| Flowmeter | yes |
| Lights | yes |
Other standard equipment
| Handrail | 1 / stainless steel |
|---|
5 seats
ø 222 × 79 cm
