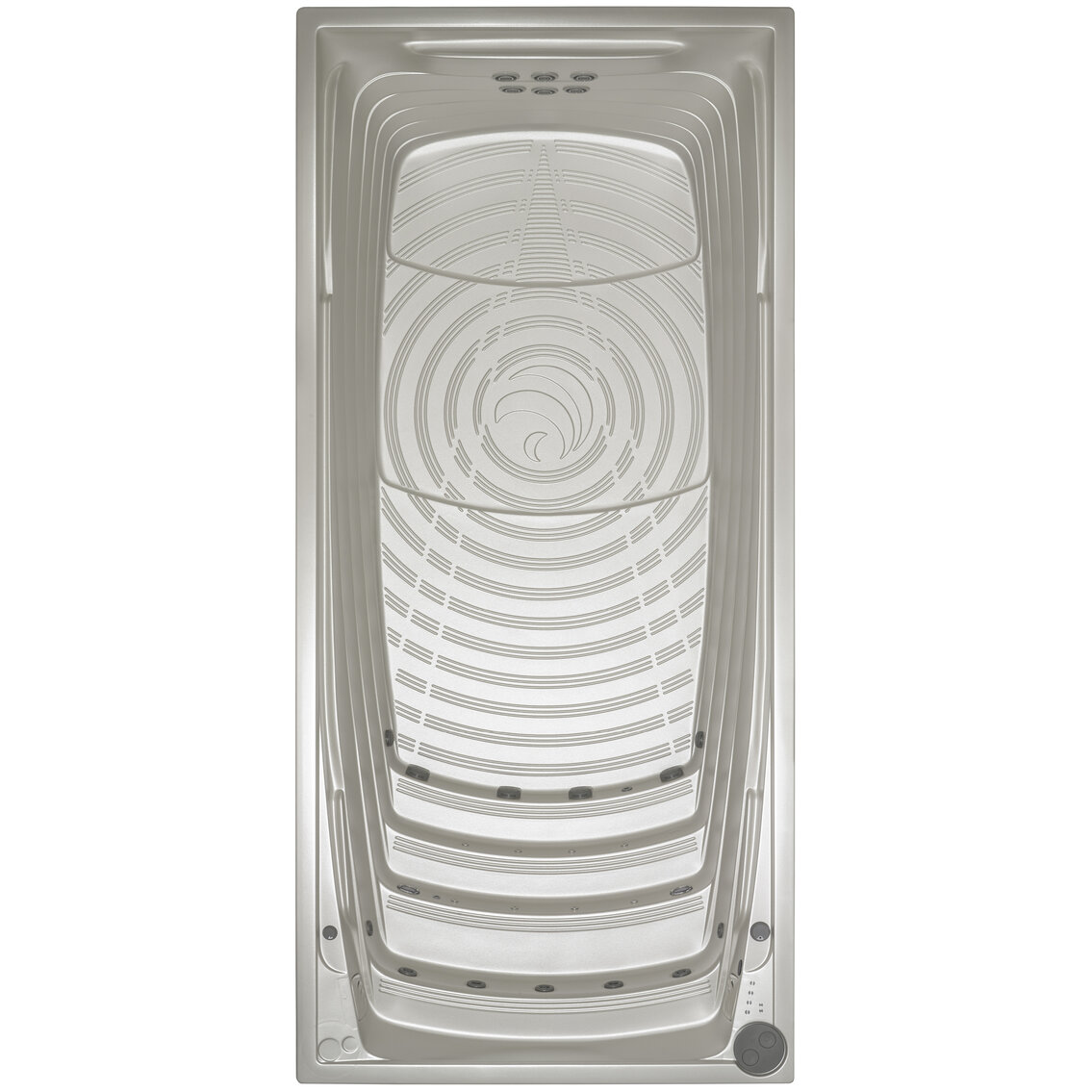

A fully-fledged alternative to a swimming pool that you can enjoy all year round. The Swim Spa XL offers plenty of space for more than just swimming. It is equipped with an adjustable counter-current system for fitness training and dual lighting to create a pleasant atmosphere for an evening swim.

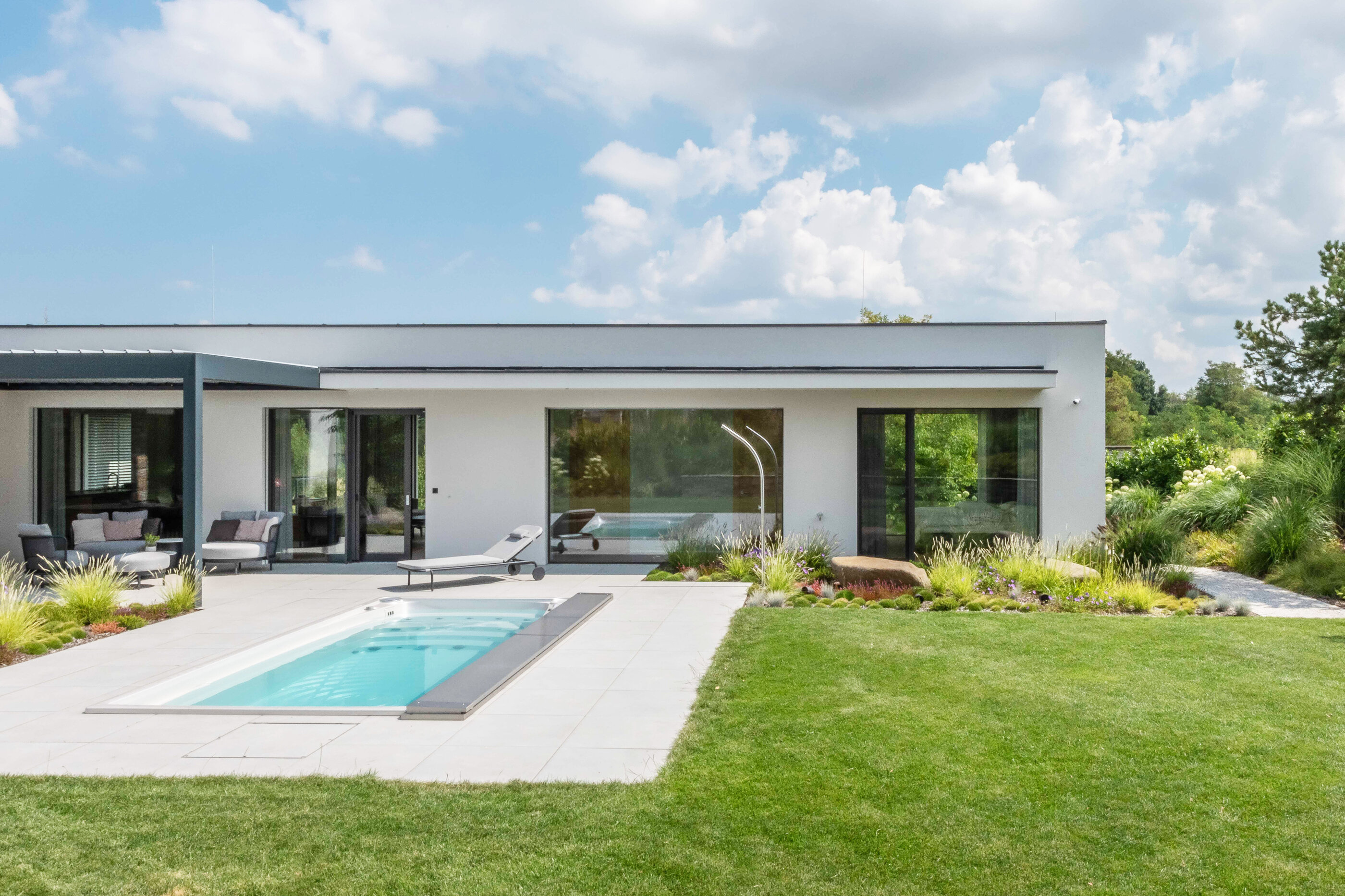

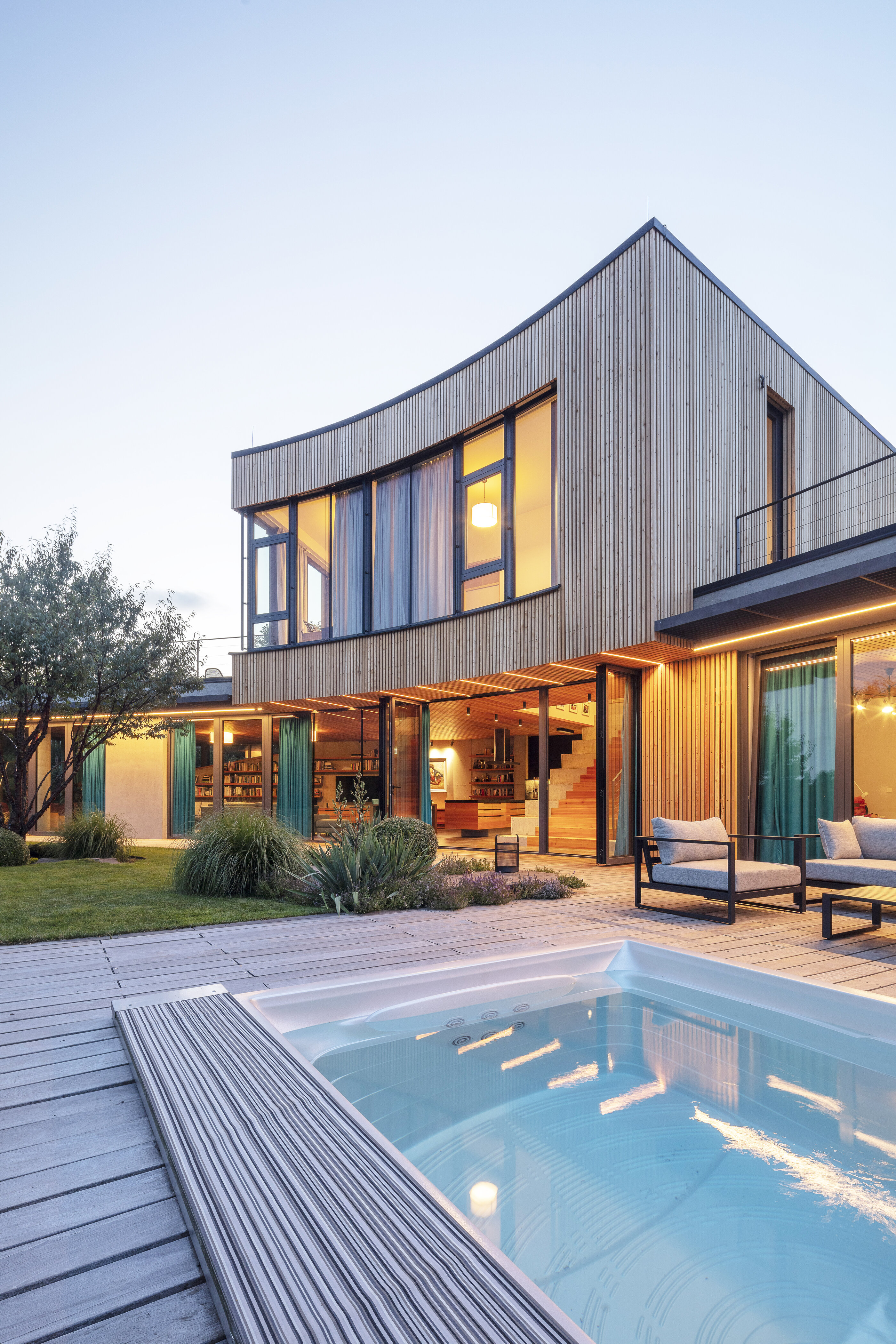

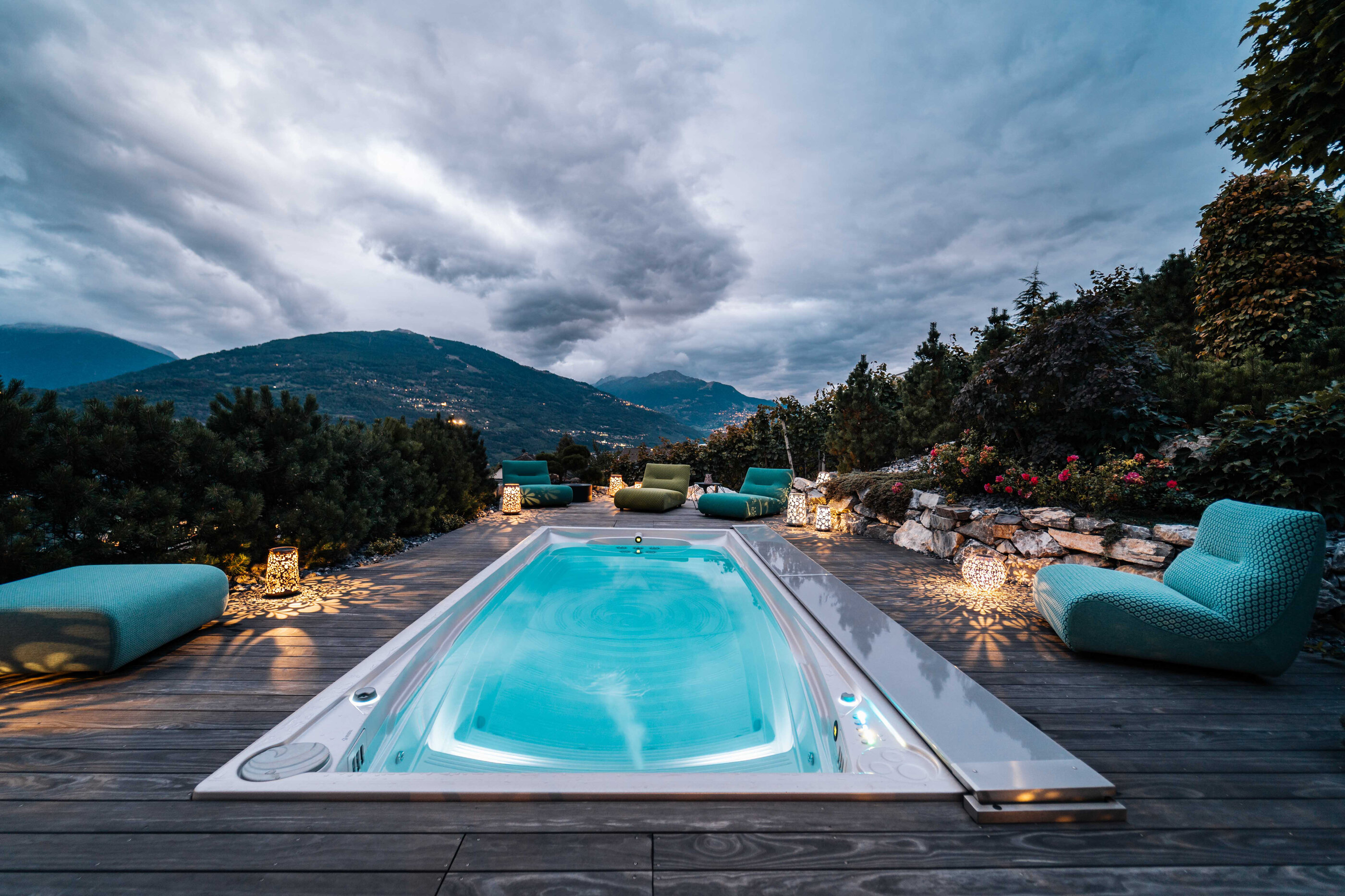

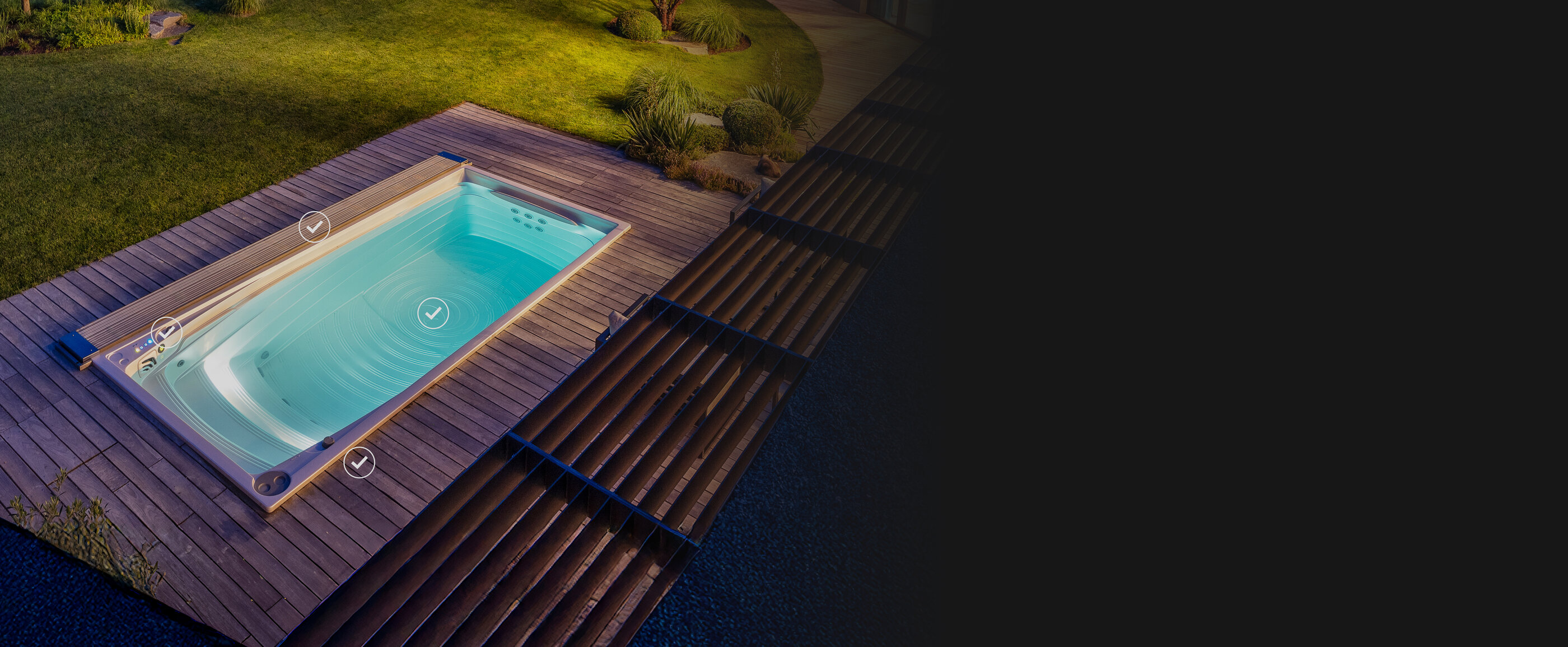

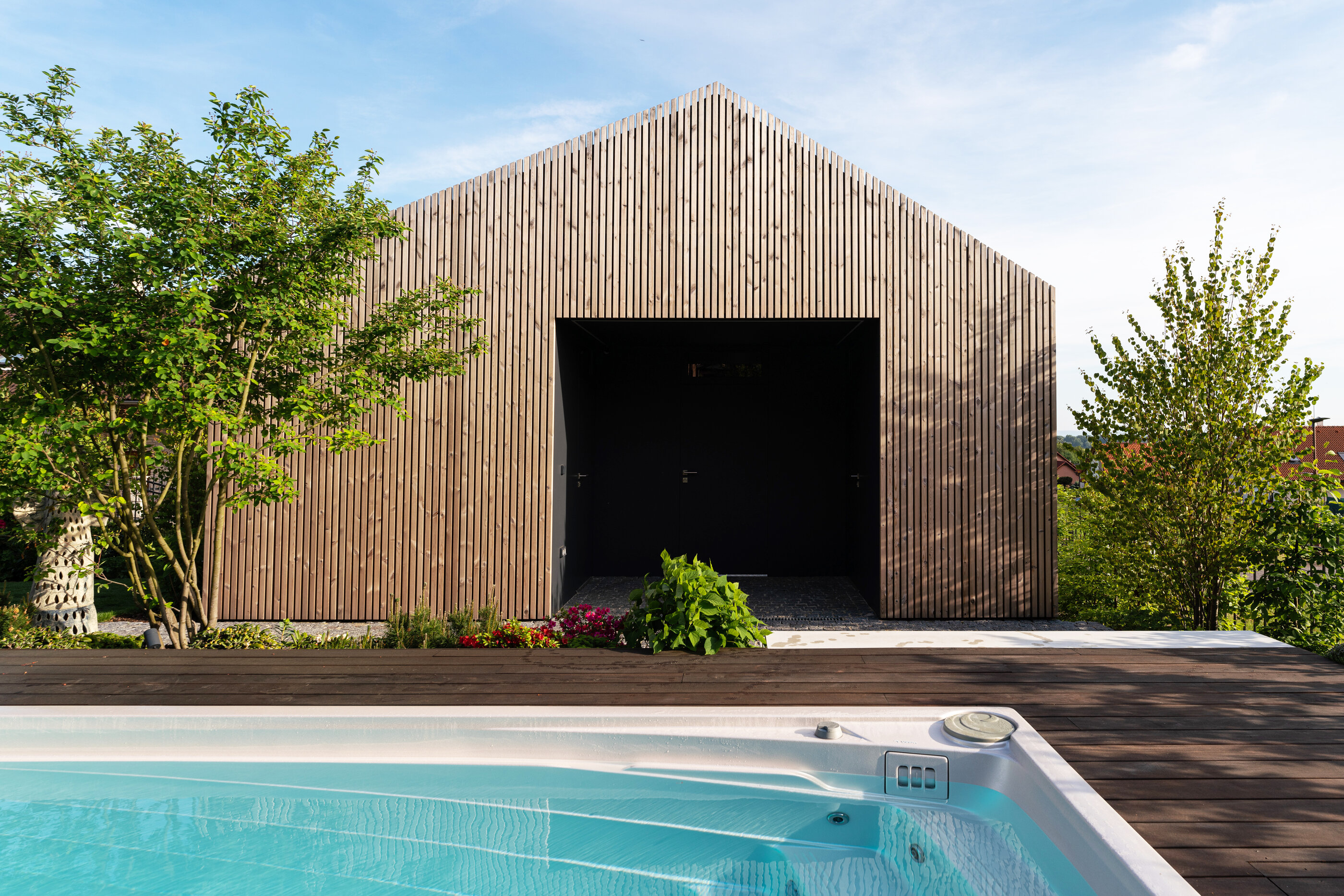

The Swim Spa XL has everything you need for exercise and perfect relaxation in pleasantly warm water that both you and your children will love. It can be sunk into the ground, or simply installed in an enclosure – for example, on a large terrace – or integrated into sloping terrain.
Swimming all year round
A comprehensive insulation system, a key component of which is the thermal cover, ensures the swim spa operates efficiently all year round. You can enjoy swimming, a dip or simply relaxing in pleasantly warm water whenever you like. Warm up in winter, cool off in summer – just as you wish.
A smart, energy-efficient swimming pool
Our swim spas are equipped with revolutionary technologies. They ensure energy-efficient operation, make water maintenance much easier and offer a range of unique automatic functions, such as an energy-saving mode and optimisation of the swim spa’s operation based on usage intensity.
more about technologies
Designed for comfort

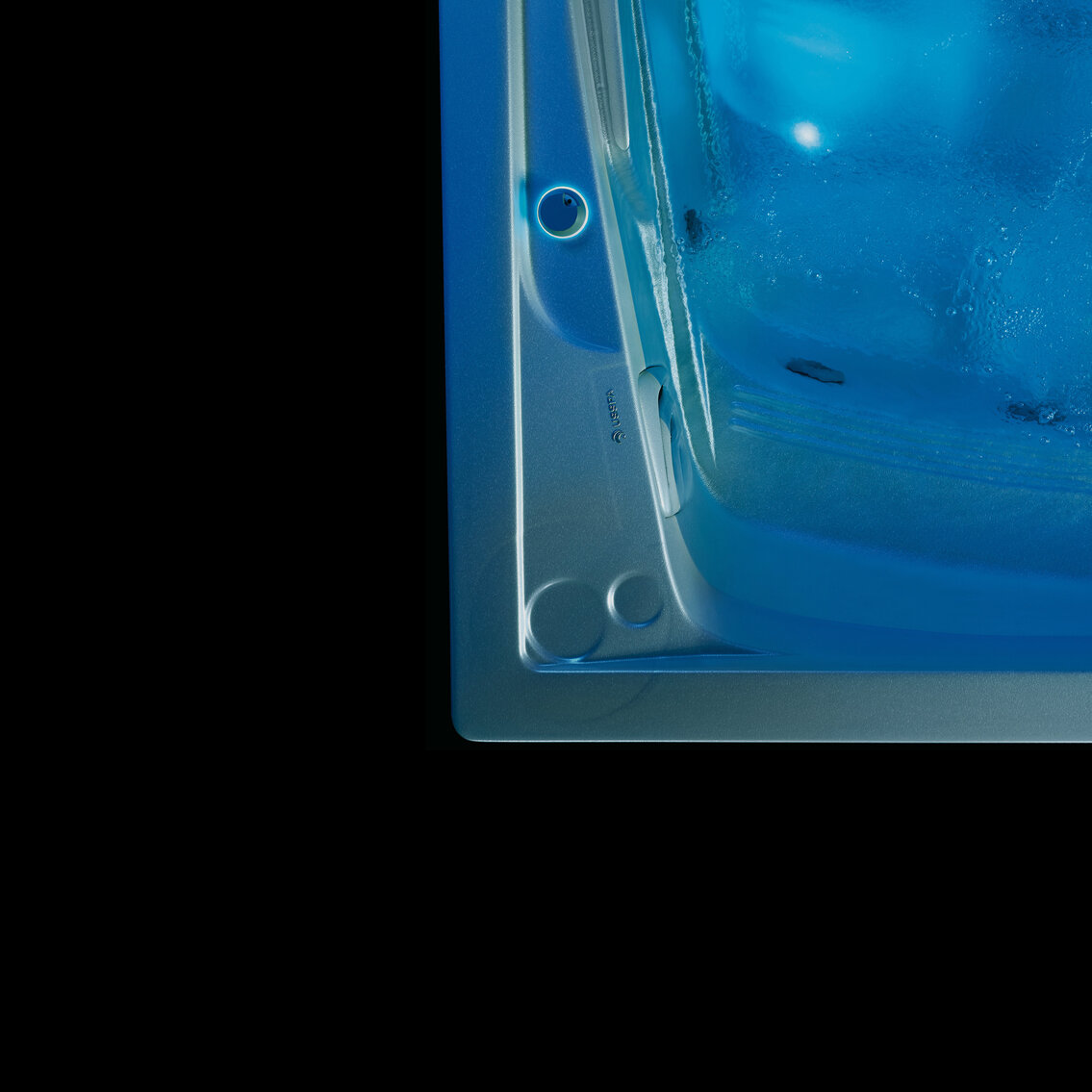

Clean lines and simplicity at first glance, combined with sophistication and meticulous attention to detail, are the hallmarks of our swim spas. Elegance goes hand in hand with functionality and user benefits, whether for swimming or low-maintenance operation.
more about design
Easy to use

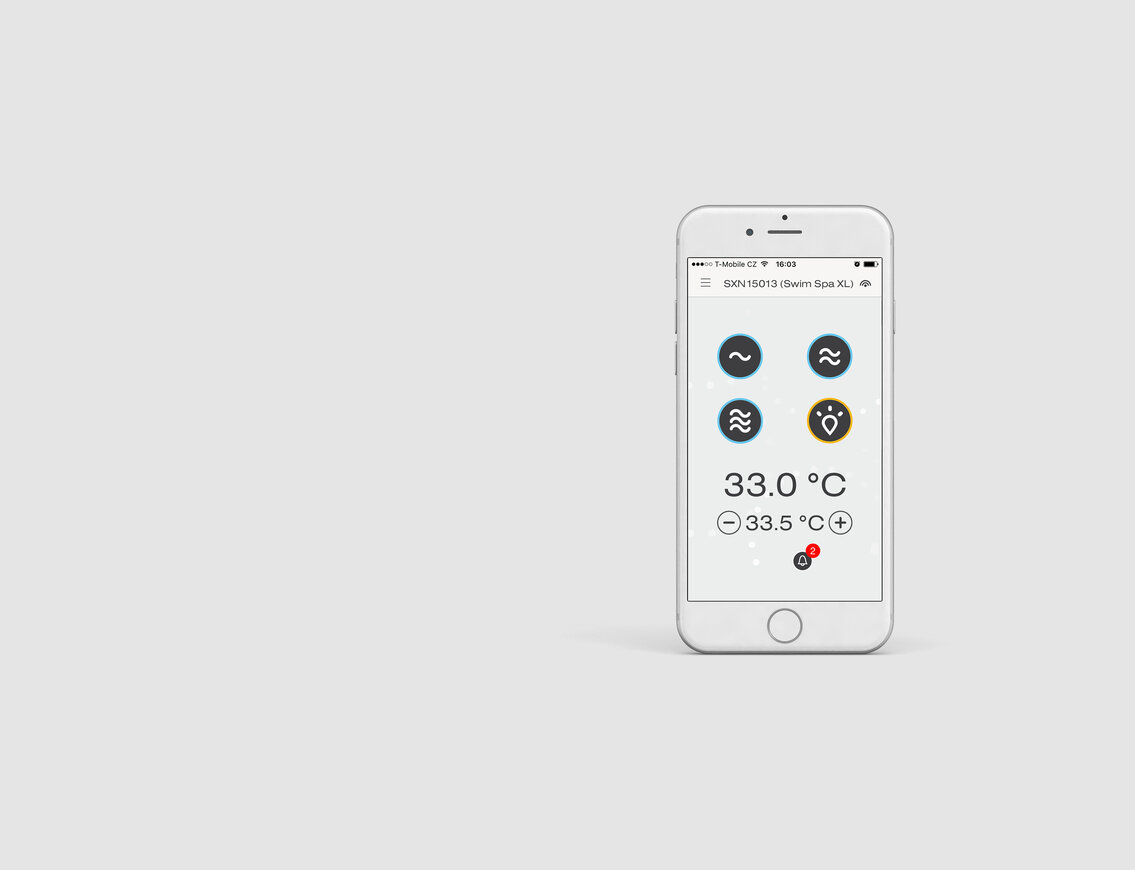

The most important features – the counter-current and the lighting – can be activated by pressing the buttons directly on the swim spa. You can easily view information about the temperature and the time spent swimming on the display whilst in the water. However, you can explore the advanced features and remote control via the mobile app. The swim spa can also be integrated into a smart home system.
Technical information
head_product_accordion_parameters

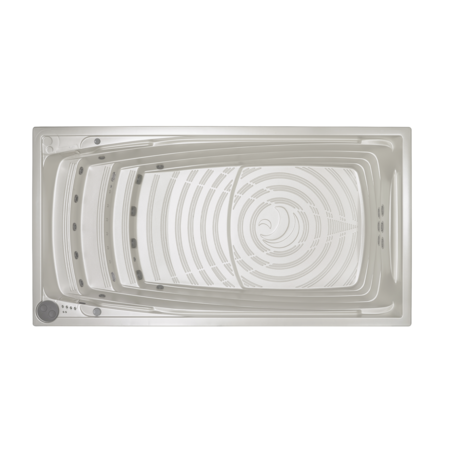

Model Details

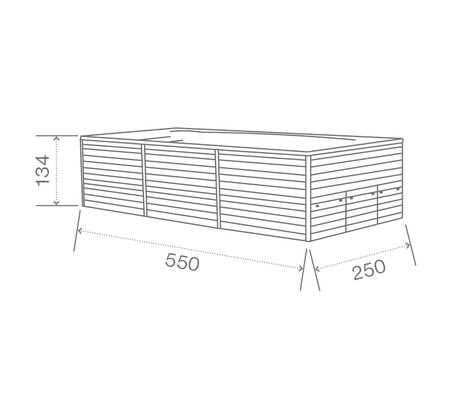

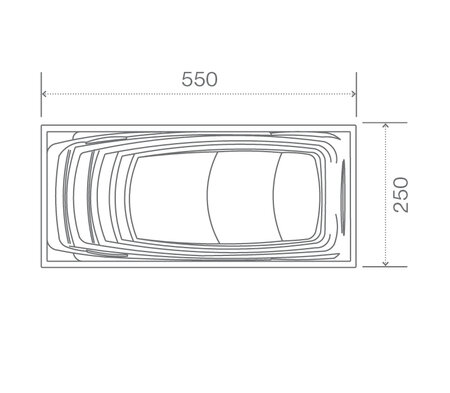

| Shell width | 250 cm |
|---|---|
| Shell height | 134 cm |
| Shell length | 550 cm |
| Cabinet width | 250 cm |
| Cabinet height | 134 cm |
| Cabinet length | 550 cm |
| Water volume | 10,200 l |
| Dry weight | 1,400 kg |
| Filled weight | 11,600 kg |
| MassiveShell Construction / color range | yes / 12 |
| Countrecurrent | up to 3,000 L/min |
Jets
| Total number of jets | 21 |
|---|---|
| Countercurrent Jets | 6 |
| Hydromassage Jets | 15 |
| Air Control | 1 |
Control
USSPA iNtellismart® electropack |
yes |
|---|---|
| ISM® control system | yes |
| Applilcation Control | USSPA SmartApp |
| Web Control (connection to internet needed) | yes |
| Selfdiagnostic with optional protocol | yes |
| Control of lifetime of selected components | yes |
| Standard Energy Save Mode | yes |
iNvision®display |
yes |
| iNcontrol piezo buttons | 4 |
Technology
| Pump 1 / single | 1,5 kW + 5 HP |
|---|---|
| Pump 2 / single | 1,5 kW + 5 HP |
| Pump 3 / single | 1,5 kW + 5 HP |
| Circulation pump | yes |
| ICM® Intelligent Cleaning Management | Automatic | Manual |
| Pressure Clean filtration | yes |
| UV lamp | yes |
| Heater | 6 kW Titanium Coil |
| Protection System | FreezeProtection |
| Insulation | PU |
| Lights | 2 x 12W |
Other standard equipment
| Handrail | 1 + 2 Gymrail |
|---|---|
| Cover / color range | yes / 8+ |
| Cabinet / design range | yes / 12 |
| Multilevel floor | yes |
