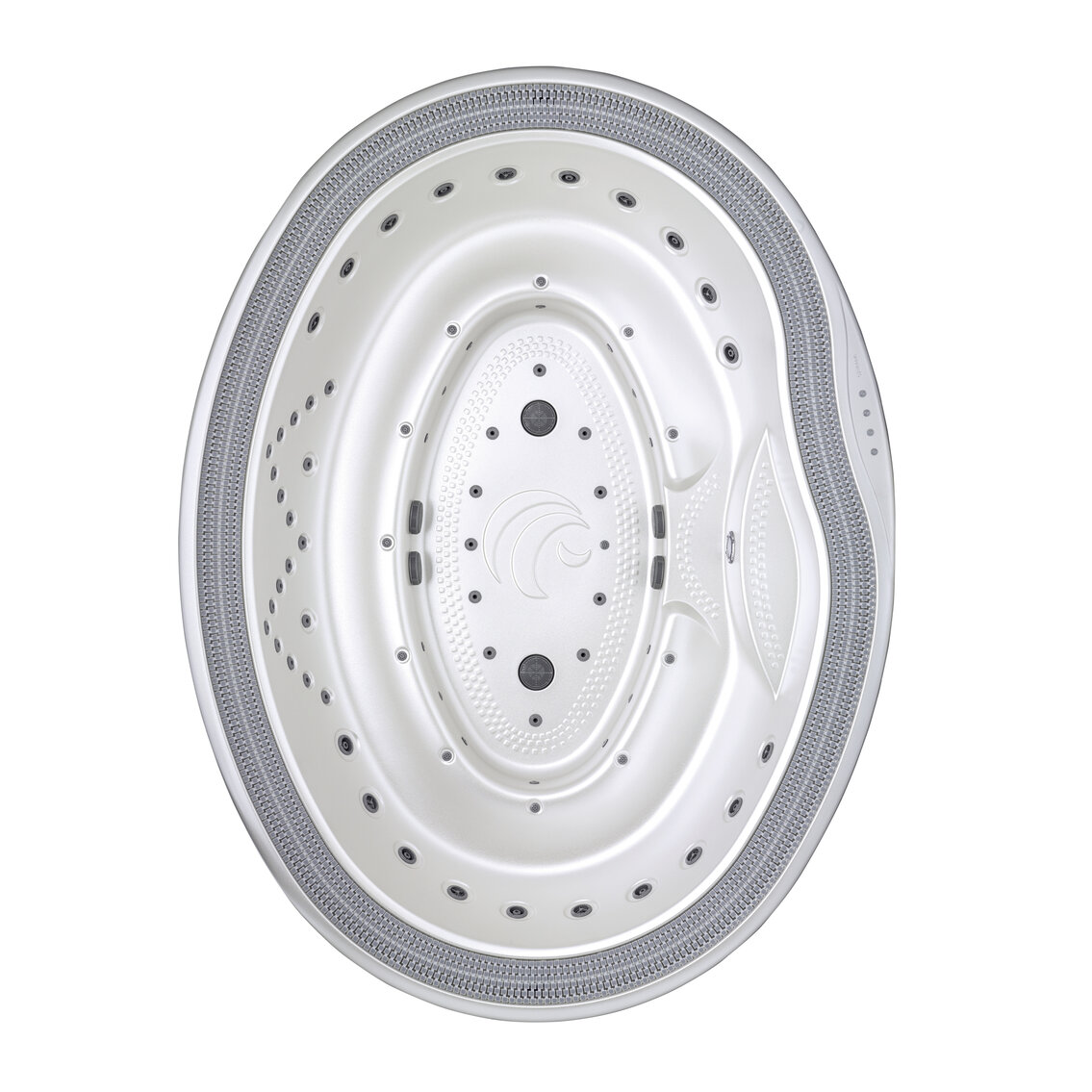

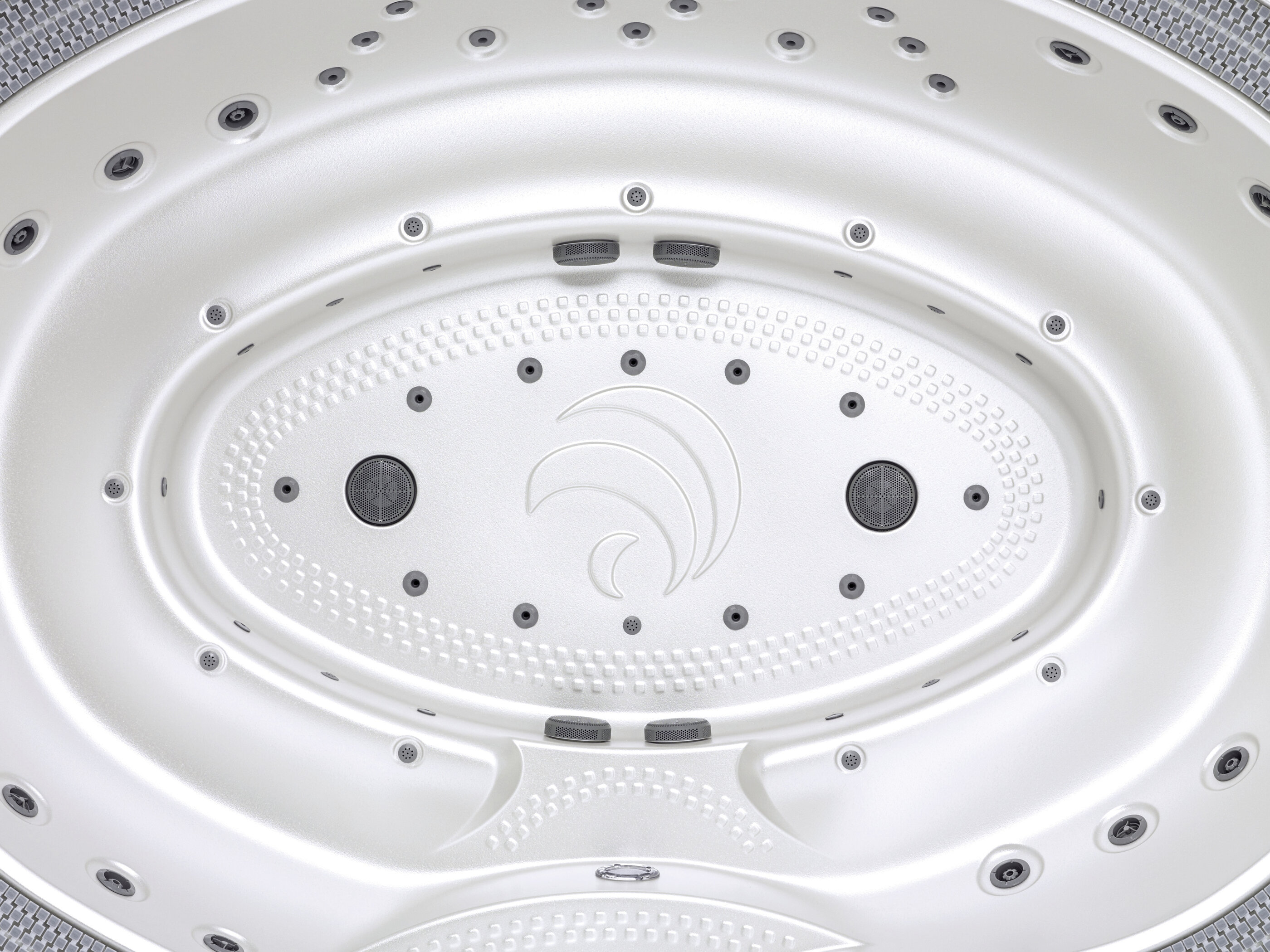

Up to twelve people can relax at the same time in this comfortable spa. The jets, arranged in a spiral pattern, are complemented here by a set of jets shaped like an inverted W, providing a unique, customisable massage.

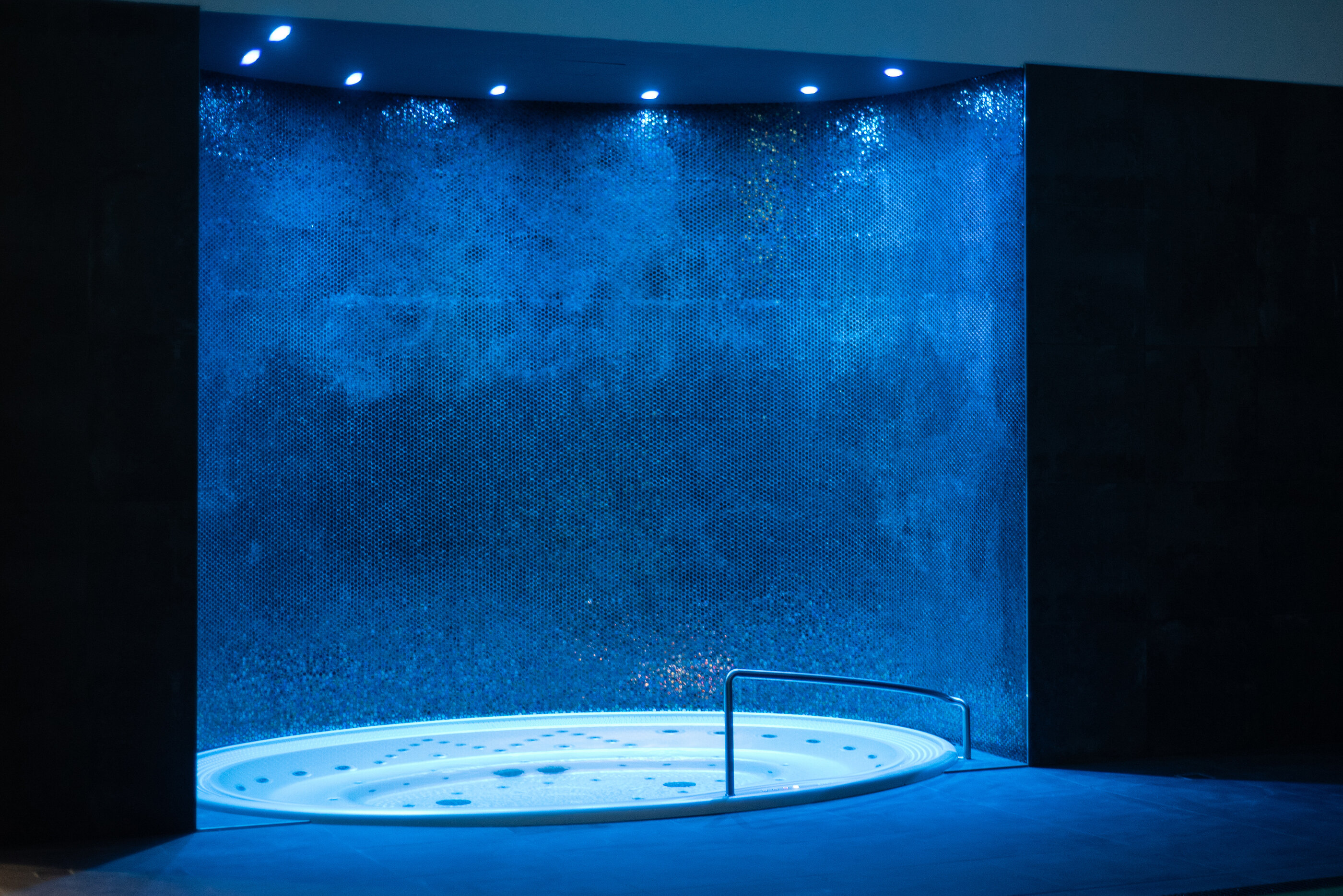

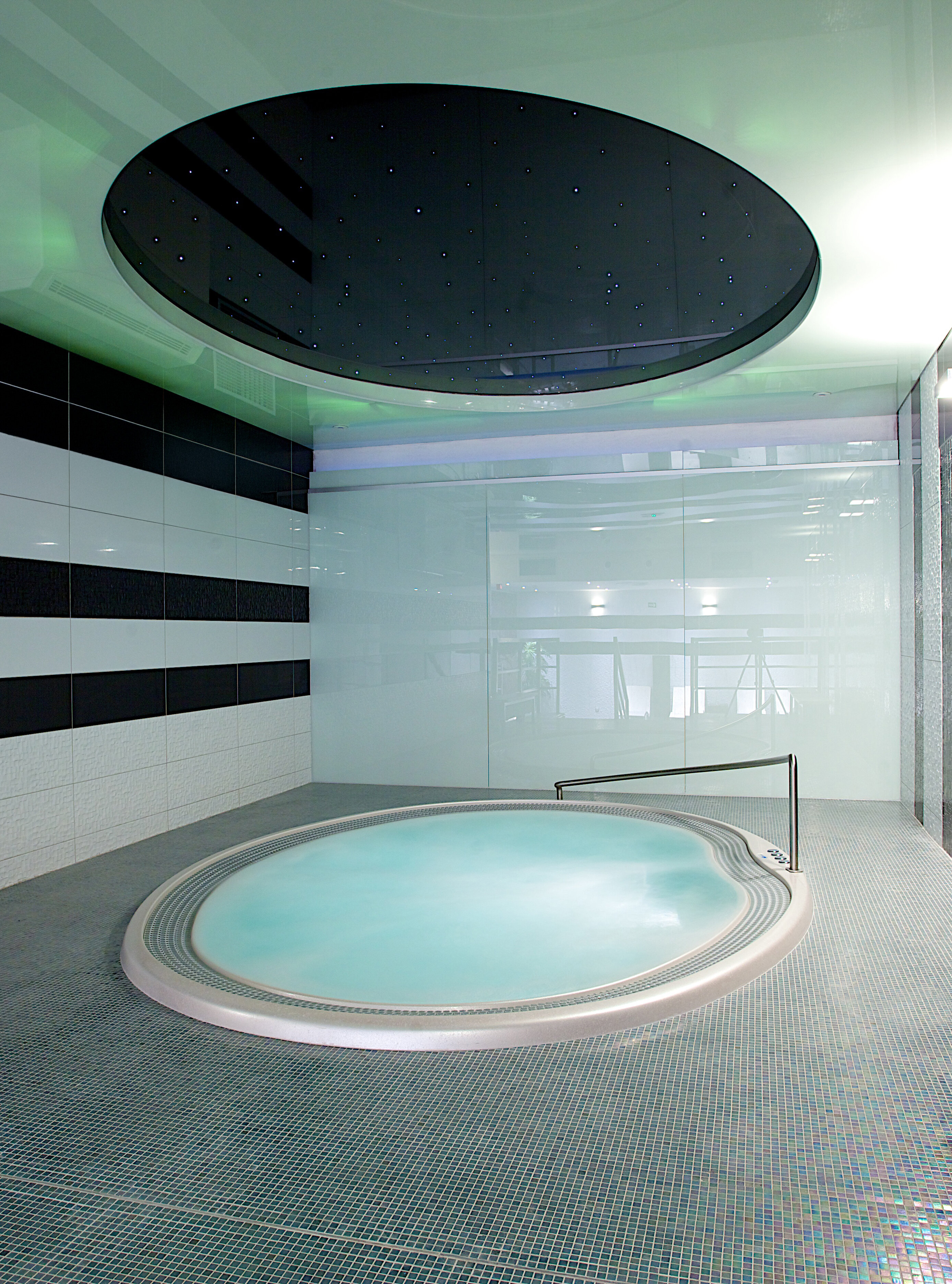

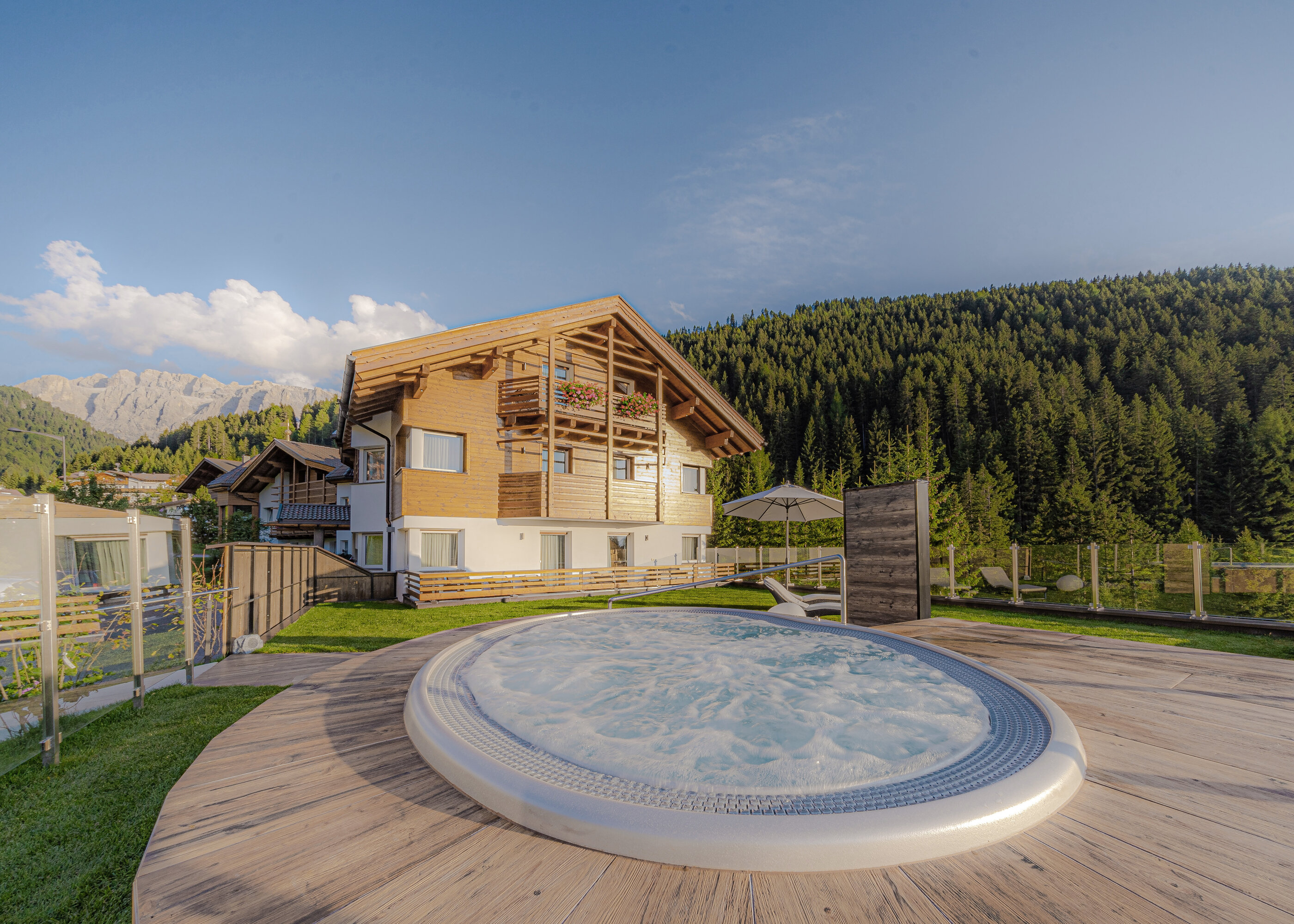

One of the largest commercial acrylic hot tubs on the market. With its above-average capacity, it is ideal for high-traffic venues and sports clubs. Its elegant elliptical shape with clean lines will be a real showpiece in your wellness centre.
Technical information
head_product_accordion_parameters
Model Details

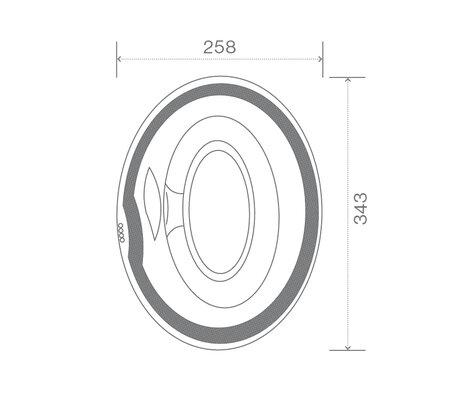

| Shell width | 343 cm |
|---|---|
| Shell height | 79 cm |
| Shell length | 258 cm |

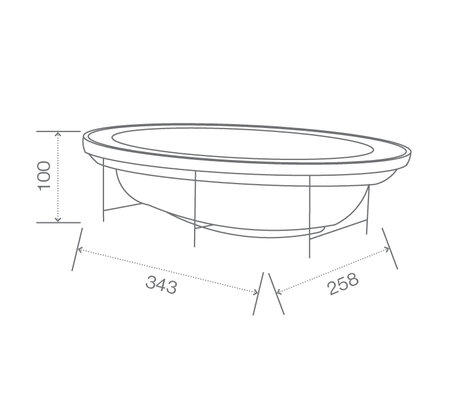

| Frame Width | 343 cm |
| Frame Height | 100 cm |
| Frame Length | 258 cm |
| Water volume | 2,600 l |
| Dry weight | 440 kg |
| Filled weight | 3,040 kg |
| MassiveShell Construction | yes |
| Configurable installation frame | yes |
| Total Seating | 12 |
| Full-perimeter overflow gutter Outflow | yes |
| Number of drains | 4 |
| Bottom outlet / sand filtration discharge | yes |
Massage
| Total number of jets | 76 |
|---|---|
| Water Jets | 60 |
| Air Jets | 16 |
Control
USSPA iNtellismart® electropack |
yes |
|---|---|
| ISM® control system | yes |
| Operation on the control unit | yes |
| Control via PC application (must connect to local LAN network) | yes |
| Selfdiagnostic with optional protocol | yes |
| Control of lifetime of selected components | yes |
| iNcontrol piezo buttons | 4 |
Technology
| Pump 1 | 1,5 kW + 3 HP |
|---|---|
| Pump 2 | 1,5 kW + 3 HP |
| Commercial air blower | yes |
| Sand Filtration | yes |
| Equalising tank | yes |
| Automatic water level sensor | yes |
| Automatic water refilling | yes |
| UV lamp | yes |
| Heater | 9 kW Titanium Coil |
| Insulation | PU |
| Automatic dosing of chemicals | yes |
| Flowmeter | yes |
| Lights | yes |
Other standard equipment
| Handrail | 1 / stainless steel |
|---|
