The Swim Spa M perfectly combines the benefits of a swimming pool with those of a hot tub. This means you can swim in the freezing cold of winter just as easily as on sweltering summer days. All with minimal demands on water and energy consumption, and minimal maintenance on your part.
The Swim Spa M provides a space for enjoyable family moments as well as individual swimming training. It can simply be placed in a room on a solid surface, or you can have it sunk into the ground.
Swimming all year round
A comprehensive insulation system, a key component of which is the thermal cover, ensures that your swim spa operates efficiently all year round. You can enjoy swimming, a dip or simply relaxing in pleasantly warm water whenever you like. Warm up in winter, cool off in summer – whatever takes your fancy.
A smart, energy-efficient swimming pool
Our swim spas are equipped with revolutionary technologies. They ensure energy-efficient operation, make water maintenance much easier and offer a range of unique automatic functions, such as an energy-saving mode and optimisation of the swim spa’s operation based on usage intensity.
more about technologies
Designed for comfort
Clean lines and simplicity at first glance, combined with sophistication and meticulous attention to detail, are the hallmarks of our swim spas. Elegance goes hand in hand with functionality and user benefits, whether for swimming or low-maintenance operation.
more about design
Easy to use
The most important features – the counter-current system and the lighting – can be activated by pressing the buttons on the swim spa itself. You can easily view information about the temperature and the time spent swimming on the display whilst in the water. However, you can explore the advanced features and remote control via the mobile app. The swim spa can also be integrated into a smart home system.

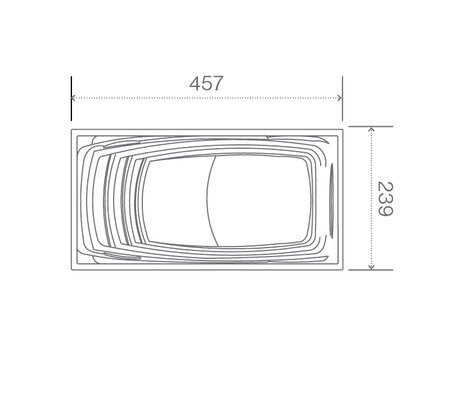

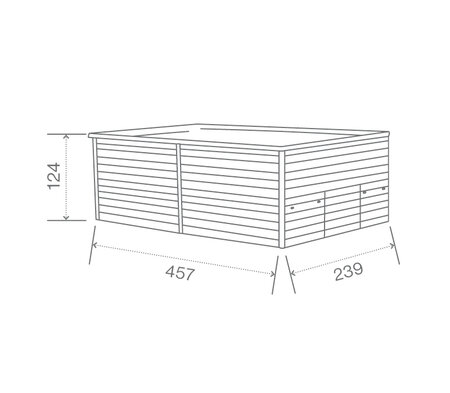

Technical information
head_product_accordion_parameters
Model Details
| Shell width | 239 cm |
|---|---|
| Shell height | 124 cm |
| Shell length | 457 cm |
| Cabinet width | 239 cm |
| Cabinet height | 124 cm |
| Cabinet length | 457 cm |
| Water volume | 7,400 l |
| Dry weight | 1,300 kg |
| Filled weight | 8,700 kg |
| MassiveShell Construction / color range | yes / 12 |
| Countrecurrent | up to 3,000 L/min |
Jets
| Total number of jets | 19 |
|---|---|
| Countercurrent Jets | 6 |
| Hydromassage Jets | 13 |
| Air Control | 1 |
Control
USSPA iNtellismart® electropack |
yes |
|---|---|
| ISM® control system | yes |
| Applilcation Control | USSPA SmartApp |
| Web Control (connection to internet needed) | yes |
| Selfdiagnostic with optional protocol | yes |
| Control of lifetime of selected components | yes |
| Standard Energy Save Mode | yes |
iNvision®display |
yes |
| iNcontrol piezo buttons | 4 |
Technology
| Pump 1 / single | 1,5 kW + 5 HP |
|---|---|
| Pump 2 / single | 1,5 kW + 5 HP |
| Pump 3 / single | 1,5 kW + 5 HP |
| Circulation pump | yes |
| ICM® Intelligent Cleaning Management | Automatic | Manual |
| Pressure Clean filtration | yes |
| UV lamp | yes |
| Heater | 6 kW Titanium Coil |
| Protection System | FreezeProtection |
| Insulation | PU |
| Lights | 2 x 12W |
Other standard equipment
| Handrail | 1 + 2 Gymrail |
|---|---|
| Cover / color range | yes / 8+ |
| Cabinet / design range | yes / 12 |
| Multilevel floor | yes |
